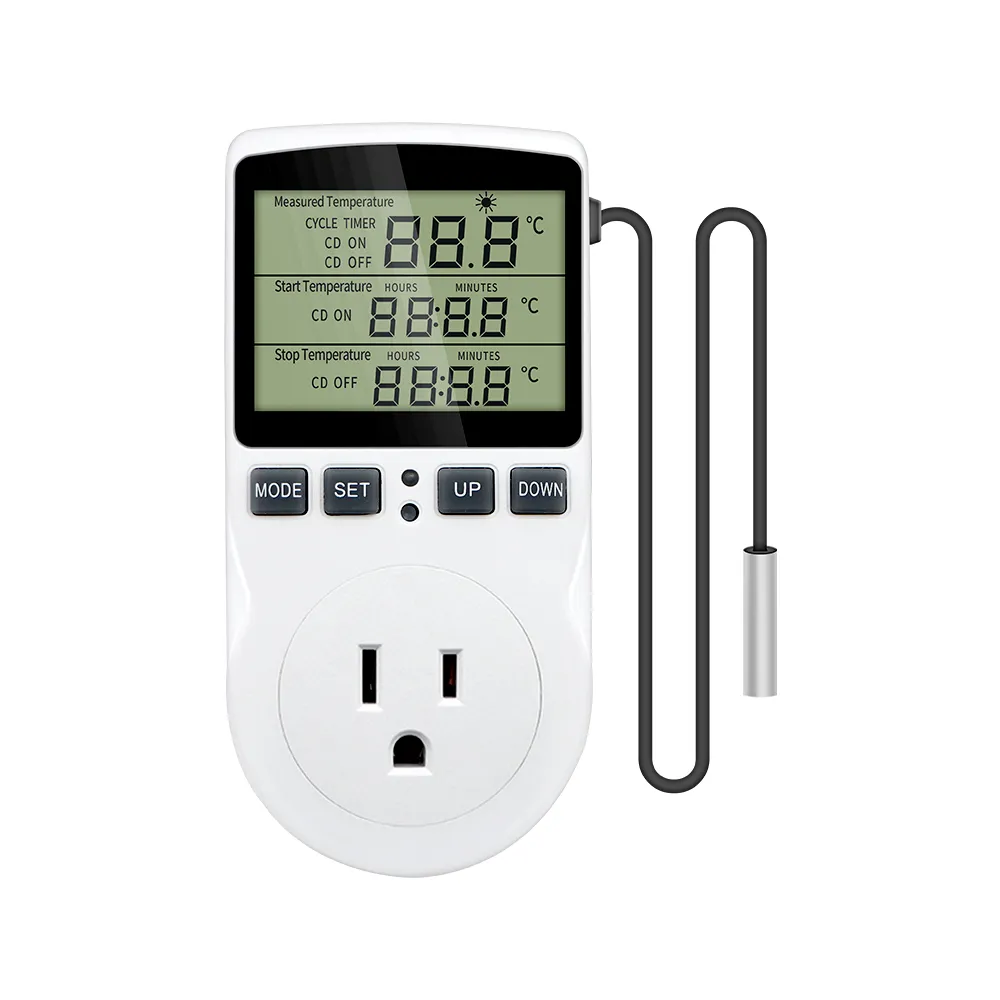

Timer Socket Digital Thermostat 220v Temperature Controller Socket Outlet With Timer Switch Cooling Heating Temperature Sensor



Digital Temperature Controller Socket Outlet with Timer Switch Sensor Probe for Heating and Cooling - UK/EU/FR/US Versions



Function:

1. Features an external temperature detector to monitor temperature accurately.
2. Allows setting of both start and stop temperatures for precise control.
3. Includes cycle timing, with start and stop times, and a timer switch for scheduled operation.
4. Ideal for intelligent control in various applications such as carbon heating systems, aquaculture, greenhouses, and domestic settings.
5. Equipped with a screen lock protection function to prevent accidental changes.
6. Pressing the RESET button for one second restores the screen and returns the device to its factory settings.
7. Retains memory settings after power loss for convenience.



Technical Specifications:

• Voltage: 110V~230V AC, 50Hz/60Hz
• EU/FR Plug: 16(2)A, 230V-Max. 3680W
• UK Plug: 13(2)A, 230V-Max. 2900W
• US Plug: 15(2)A, 120V-Max. 1800W

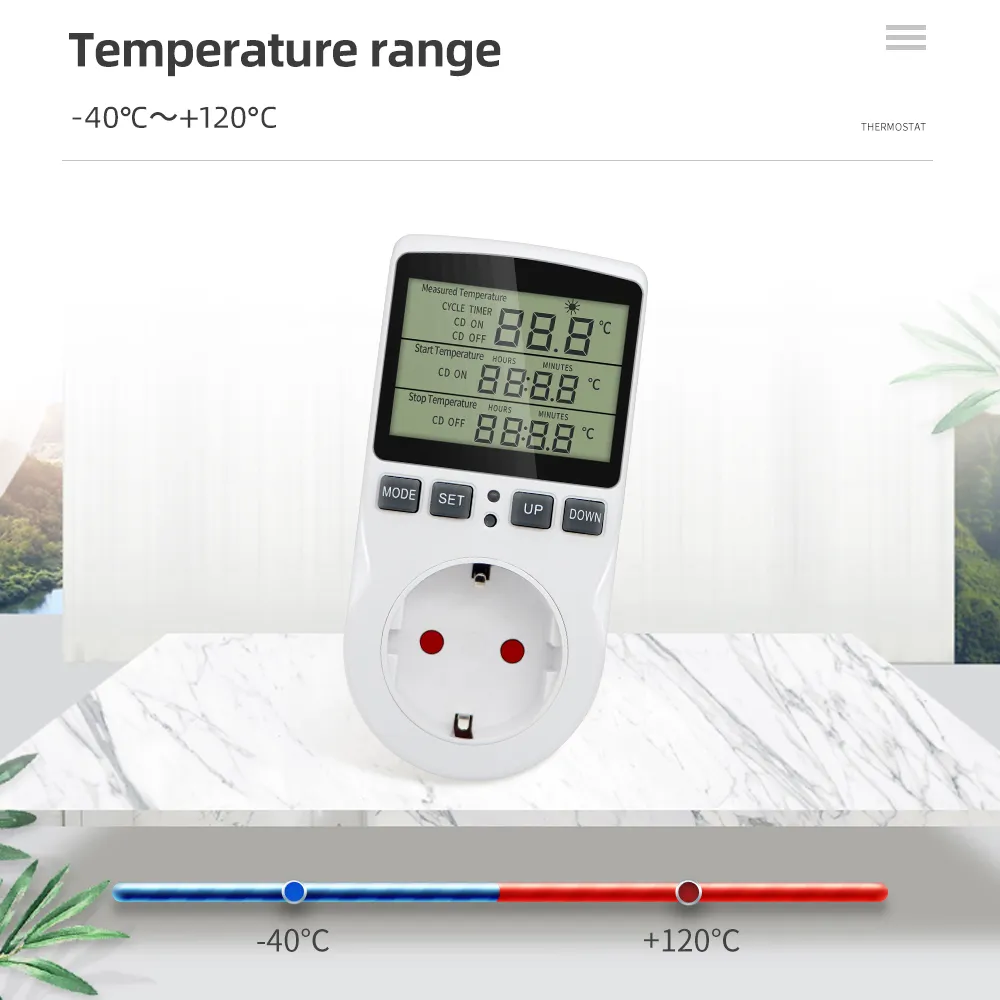

• Temperature Range: -40~120°C
• Accuracy: ±1%
• Timing Accuracy: Max 10 minutes
• Error Displays:
  • Open circuit (or below -40°C): Display flashes "E1"; for temperatures -40~-45°C, display shows -40°C.
  • Short circuit (or above 120°C): Display flashes "E2"; for temperatures 121-129°C, display shows 120°C.
  • Below -10°C or above 100°C, decimal values are not displayed.
• Refrigeration Mode: Start temperature > Stop temperature
• Heating Mode: Start temperature < Stop temperature



Mode Button:

• Press MODE to toggle between temperature control mode and timing mode (F01-F04):
  • F01: Cycling timing mode, alternating start time (ON) and stop time (OFF).
  • F02: Countdown ON mode, starts after a delay, initially OFF.
  • F03: Countdown OFF mode, initially ON, turns OFF after a delay, then exits operation.
  • F04: Combination of countdown ON and OFF modes, starts after a delay, then turns OFF after another delay, and exits operation.



Temperature Correction Function:

• Long press the MODE button upon powering on to enter real-time temperature calibration mode after 2 seconds.
• Temperature correction range: -9.9~9.9°C.
• Exit without saving by pressing SET for 5 seconds.
• Save current correction by long-pressing the MODE button.



This versatile temperature controller socket is designed for efficient heating and cooling management in a variety of settings, ensuring optimal conditions with ease of use and reliability.
